Metal Detector for Medicine

Metal Detector for Medicine

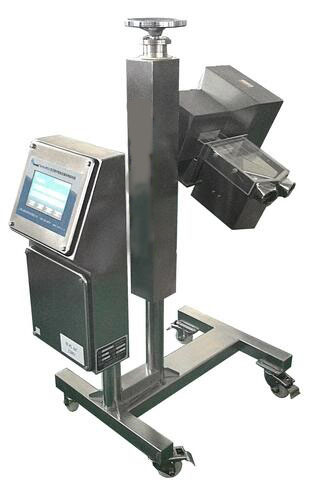

Product Name : Metal Detector for Medicine
Directions

Metal Detector for Medicine


Suitable for erection after some pharmaceutical devices like the tablet press machine, the capsule filling machine and the sieve machine. High sensitivity and stability detection of Ferrous metal(Fe),Non-Ferrous metals (Copper, Aluminum) and Stainless Steel.



Metal Detector KMD-I-M Series

·         1. High frequency running mode, greatly enhance the detection sensitivity

·         2. Accurate and efficient rejecter, less material loss

·         3. In line with pharmaceutical standards and regulations, in accordance with the GMP standard

·         4. Touch-screen displays, easy to set up and operate

·         5. Adjustable height and angle of the device, easy to be moved casters




Specifications

Model

KMD-I-M

Detection Width

70mm

100mm

150mm

Detection Height

20mm

25mm

35mm

Sensitivity

Fe

≥Φ0.6mm

SUS304

≥Φ0.8mm

Display Mode

TFT Touch Screen

Operation Mode

Touch Input

Product Storage Quantity

99kinds

Channel Material

Food Grade Plexiglass

Rejecter

Automatically Rejected

Power Supply

AC220V (Optional)

Pressure Requirements

0.5Mpa ≥

Main Material

SUS304

·         Note

·         1. The technical parameter above namely is the result of sensitivity by detecting only the test sample on the belt. The sensitivity would be affected according to the products being detected, working condition and also the different positions the metal mixed with.

·         2. Requirements for different sizes by customers can be fulfilled.
