Plate House Magnet

Plate House Magnet
Product Name : Plate House Magnet
Directions

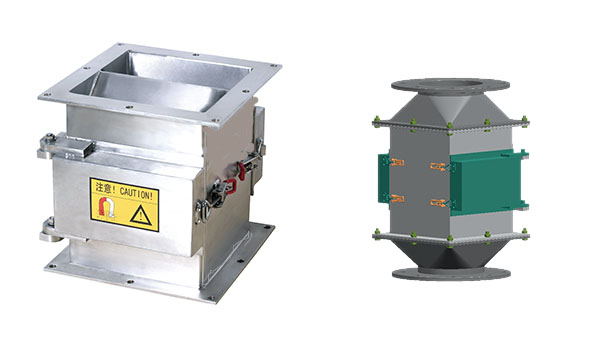

Plate House Magnet

Features
1. Plate Magnets are hinged to the housing like doors which is easy cleaning.
2. A wedge-shaped baffle at the top of the housing can prevent materials from bridging and choking and also can break up the caked material which makes the material flow through the surface of two powerful Plate Magnets.
3. With high power rare earth magnet, plate housing magnets ensure to grab all sizes of contamination firmly.
4. Customized inlet, outlet and any other special requirements are available.

Applications
Plate Housing Magnets are widely used to remove tramp iron and ferrous fines from flow-resistant bulk materials that are easy block.

The stainless steel housings can be easily installed to enclosed spouting line or directly mounted on processing equipment.


Plate Housing Magnet

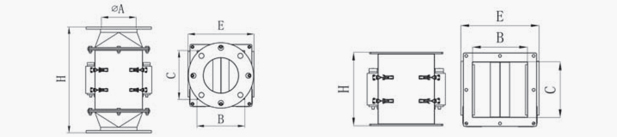

Specifications:

Model

Dimension(mm)

Weight(Kg)

ΦA

B

C

E

H

KMD-MC150

150

208

208

322

470

27

KMD-MC200

200

208

258

322

470

34

KMD-MC250

250

258

358

372

500

62

KMD-MC2020

-

208

208

322

300

17

KMD-MC2025

-

208

258

322

300

21

KMD-MC2525

-

258

258

372

300

27

KMD-MC2530

-

258

308

372

300

32

KMD-MC2535

-

258

308

372

300

37

KMD-MC2540

-

208

408

372

300

42

KMD-MC2545

-

258

458

372

300

47

KMD-MC2550

-

208

508

372

300

53

KMD-MC2555

-

258

558

372

300

58

KMD-MC2560

-

258

608

372

300

63
