Levantador MagnÉTico Permanente

 Levantador MagnÉTico Permanente
 Levantador MagnÉTico Permanente
 Levantador MagnÉTico Permanente
nombre del producto : Levantador MagnÉTico Permanente
direcciones

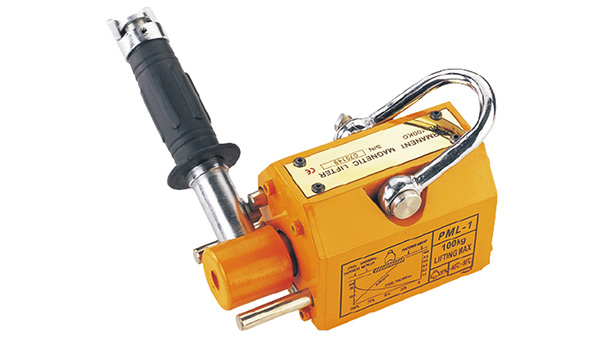

Type one


Features
1. Powered by strong NdFeB magnets.
2. It can easily hold and release steel pieces by the handle switch which greatly improve efficiency.
3. Safety factor is 3.5. It can lift objects even there is a big air gap with work pieces.
4. MAX working temp 80℃

Applications
The lifter can lift different shapes of steel working pieces directly like steel plate, steel pipe or rod in factory, dork, warehouse, etc.

Specifications

Model

Rated Lifting Force(Kg)

Rated lifting force for round shape
  (Kg)

Max Pulloff Force (Kg)

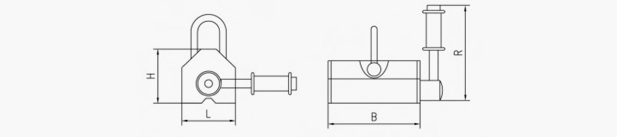

Dimensions(mm)

Weight

L

B

H

R

PML-100

100

30

350

60

100

70

126

3

PML-300

300

100

1050

94

168

96

155

10

PML-600

600

200

2100

120

222

116

196

24

PML-1000

1000

300

3500

132

273

120

285

34

PML-1500

1500

500

5250

152

360

173

426

50

PML-2000

2000

750

7000

152

460

173

426

70

PML-3000

3000

1000

10500

286

458

261

521

86

PML-6000

6000

2000

21000

430

600

355

730

420

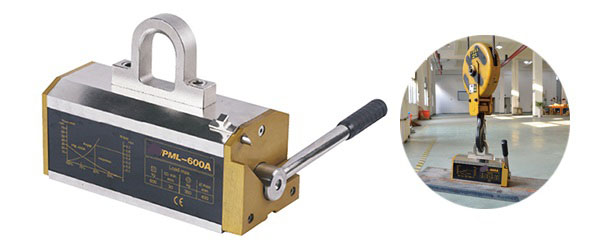

Type two


Features
1. Powered by strong NdFeB magnets.
2. It can easily hold and release steel pieces by the handle switch which greatly improve efficiency.
3. Safety factor is 3.5. It can lift objects even there is a big air gap with work pieces.
4. MAX working temp 80

Applications
The lifter can lift different shapes of steel working pieces directly like steel plate, steel pipe or rod in factory, dork, warehouse, etc.

Specifications

Model

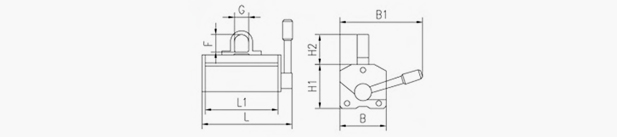

Dimensions(mm)

NW(Kg

L

L1

B

H1

H2

B1

F

G

PML-100A

120

90

55

60

50

120

35

25

3

PML-300A

203

165

87

89

68

223

45

38

10

PML-600A

266

226

112

109

89

287

58

45

21

PML-1000A

330

290

148

125

95

364

60

52

40

PML-1500A

385

330

178

145

118

447

70

65

65

PML-2000A

470

420

178

145

118

487

70

65

83

PML-3000A

490

435

210

175

128

487

80

70

125

Work Piece Shape

Steel Plate

Round Steel Products

Model

Rated lifting force
  (Kgs)

Min Thickness
  (mm)

Min Thickness
  (mm)

Rated lifting force
  (Kgs)

Max diameter
  (mm)

Max length
  (mm)

Min Thickness
  (mm)

PML-100A

100

10

1000

50

100

1000

10

PML-300A

300

20

1500

150

300

1500

12

PML-600A

600

30

2000

300

400

2000

20

PML-1000A

1000

40

3000

500

450

3000

28

PML-1500A

1500

50

3000

750

500

3000

34

PML-2000A

2000

60

3000

1000

600

3000

40

PML-3000A

3000

60

4000

1500

700

4000

50
