MW5 Series Lift Electromagnet

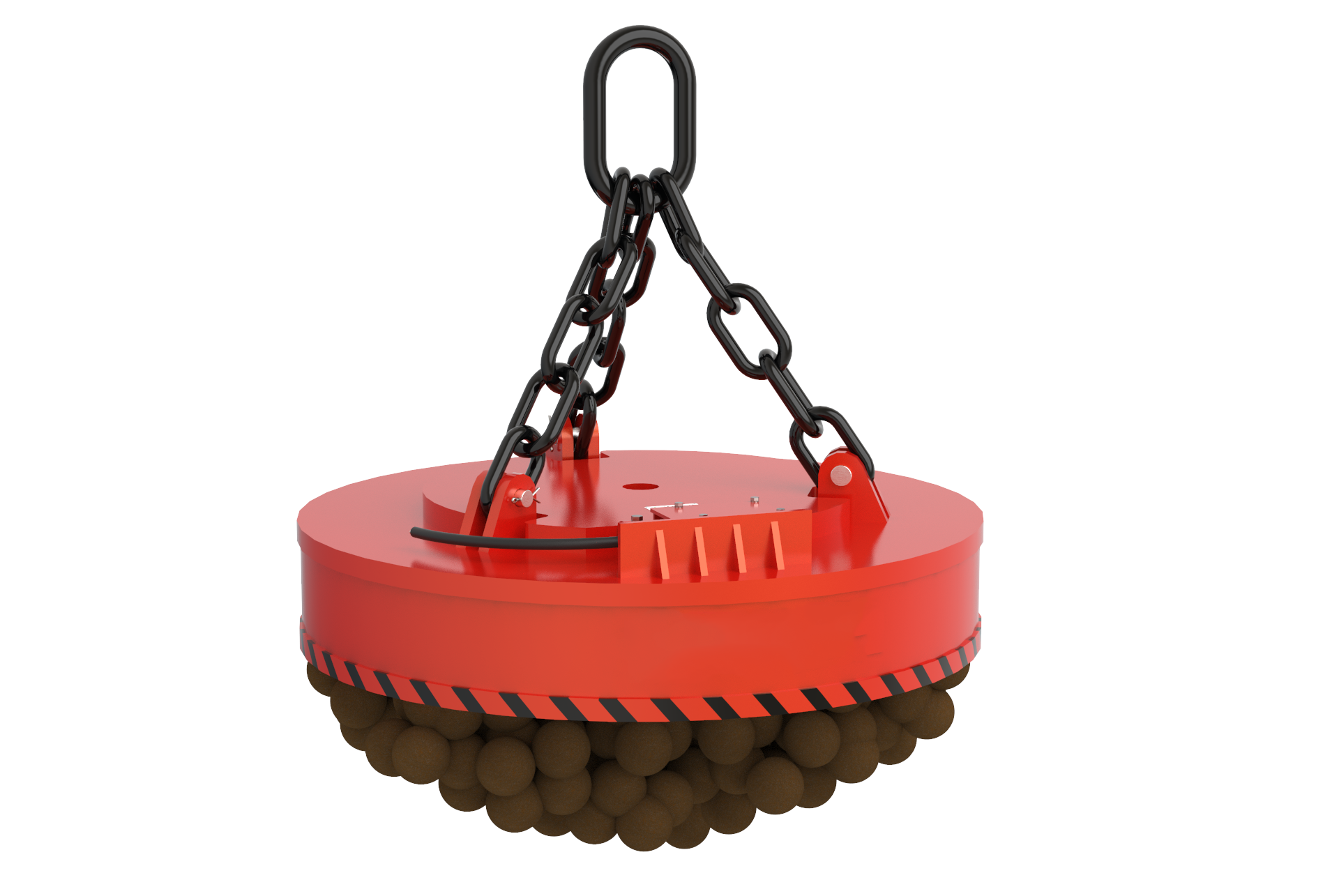

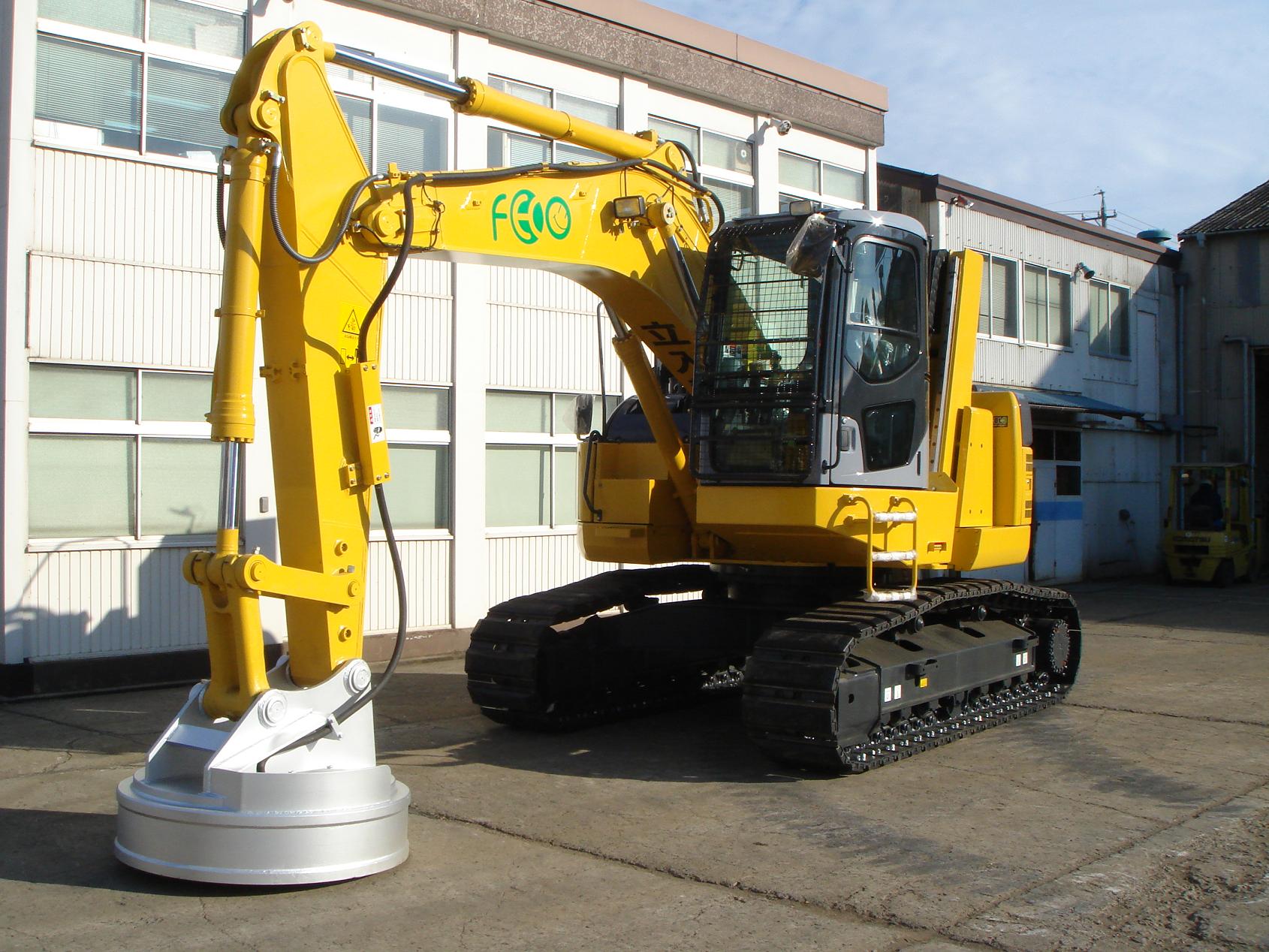

MW5 Series Lifting Electromagnet for Steel Scraps
Lifting Electromagnets of MW5 Series are suitable for casting ingot, steel ball,pig iron, machine turning chips, steel scrap. During slag disposal process, it can remove large size of tramp irons at initial step. Outlet box of this series has 2 chambers, an extra-thick fender and an anti-twist setting. There are three excitation options: rated voltage DC220V, strong excitation, and over excitation.
Normal Temp Type:
Technical Parameters Table: Main Technical Data(rated Volt. DC-220V,duty cycle TD60%)
|
Model |
Cold-state power (Kw) |
Current(A) Cold/Hot State |

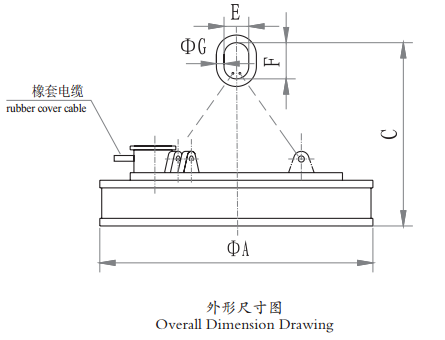

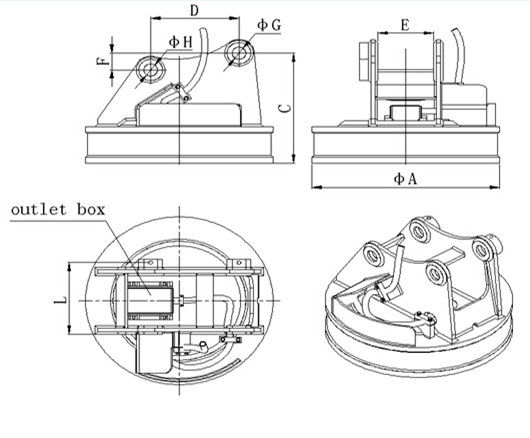

Dimension(unit: mm) |
Self-Weight (kGs) |
Lifting Capacity(kG) Cold/Hot State |
||||||
|
A |
C |
F |
E |
G |
Steel Ball |
Casting Ingot |
Turnings |
||||
|
MW5-50L/1 |
2.6 |
11.8/7.7 |
500 |
700 |
160 |
90 |
25 |
220 |
1200 |
220/130 |
80/65 |
|
MW5-60L/1 |
3.0 |
13.6/8.9 |
600 |
750 |
160 |
90 |
25 |
340 |
2000 |
290/170 |
95/80 |
|
MW5-70L/1 |
3.3 |
15/9.8 |
700 |
800 |
160 |
90 |
30 |
490 |
2500 |
380/200 |
120/100 |
|
MW5-80L/1 |
4.0 |
18/12 |
800 |
800 |
160 |
90 |
30 |
620 |
3000 |
480/250 |
150/130 |
|
MW5-90L/1 |
5.9 |
26.8/17.5 |
900 |
1090 |
200 |
125 |
40 |
800 |
4500 |
600/400 |
250/200 |
|
MW5-110L/1 |
7.7 |
35/22.8 |
1100 |
1140 |
220 |
150 |
45 |
1350 |
6500 |
1000/800 |
450/400 |
|
MW5-120L/1 |
10 |
45.5/29.5 |
1200 |
1100 |
220 |
150 |
45 |
1700 |
7500 |
1300/1000 |
650/500 |
|
MW5-130L/1 |
12 |
54.5/53.5 |
1300 |
1240 |
250 |
175 |
50 |
2010 |
8500 |
1400/1100 |
700/600 |
|
MW5-150L/1 |
15.6 |
70.9/46.1 |
1500 |
1250 |
350 |
210 |
60 |
2830 |
11000 |
1900/1500 |
1100/900 |
|
MW5-165L/1 |
16.5 |
75/48.8 |
1650 |
1590 |
370 |
230 |
75 |
3200 |
12500 |
2300/1800 |
1300/1100 |
|
MW5-180L/1 |
22.5 |
102.3/66.5 |
1800 |
1490 |
370 |
230 |
75 |
4230 |
14500 |
2750/2100 |
1600/1350 |
Note: submarine and high temperature types are also available as per user’s request.
