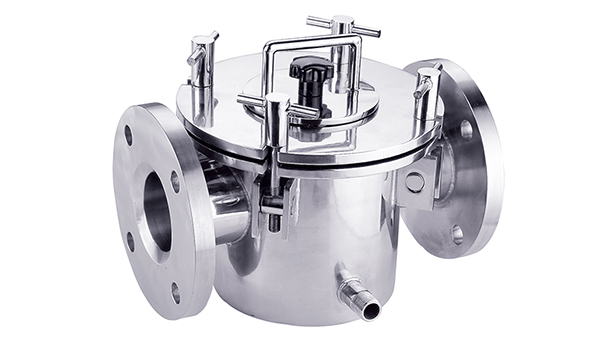

I Style Magnetic Liquid Traps

I Style Magnetic Liquid Traps
Product Name : I Style Magnetic Liquid Traps
Directions

Product Description
Magnetic Liquid Traps, also named as Magnetic Liquid Filters, are designed for removing Ferrum contamination form liquid or semi-liquid materials with different viscosity, to keep materials purity and protect the equipment. Insulation (I Style) Magnetic Liquid Traps have sandwich, which can be filled with heat insulation materials such as water and oil, to meet the insulation demands of liquid passing through the traps. It is an ideal choice to removing ferrous contamination from chocolate, jams, syrups, jams etc.

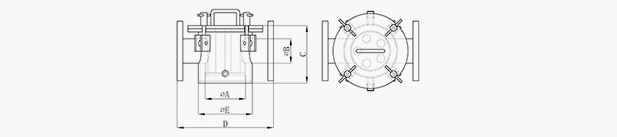

Specifications

Model

Dimension(mm)

No. of rods

Weight(Kg)

ΦA

ΦE

ΦB

C

D

FLD125/25

125

168

32

185

300

5

21

FLD125/32

125

168

38

185

300

5

22

FLD125/40

125

168

45

185

300

5

23

FLD125/50

125

168

57

185

300

5

24

FLD125/65

125

168

76

185

300

5

25

FLD160/50

160

219

57

220

360

7

32.5

FLD160/65

160

219

76

220

360

7

34

FLD160/80

160

219

89

220

360

7

36

FLD160/100

160

219

108

220

360

7

37.5
