Magnetic Pulley

Magnetic Pulley
Magnetic Pulley
Magnetic Pulley

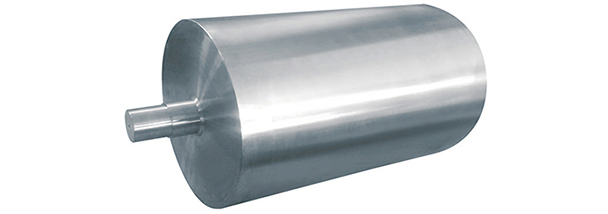

Product Name : Magnetic Pulley
Directions

Magnetic Pulley

Features
1. The drum body can be made from cheap ferrite magnets .The max magnetic strength can be up to 15000GS if made from powerful rare earth magnets.
2. Surface material is 304 or 316L stainless steel which is in good corrosion resistance.
3. No electric power required for magnetic field generation.
4. A special design for two ends of the pulley is in order to connect with a motor.
5. An automatic separation system can be formed if the pulley works together with the conveyor.
6. Special requirement can be custom made
.

Applications

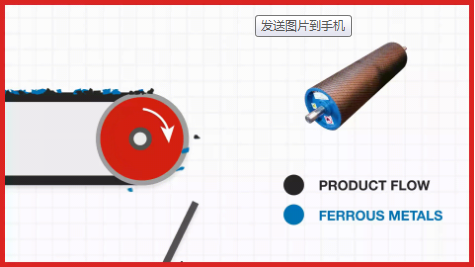

Magnetic Pulleys always are placed at the head of conveyor belt to separate iron particle,iron scrap,tramp iron and other ferromagnetic objects from more bulk dry material flow such as iron ore,grain,sand,gravel,plastics,wood,waste,cullet,rubber,etc.

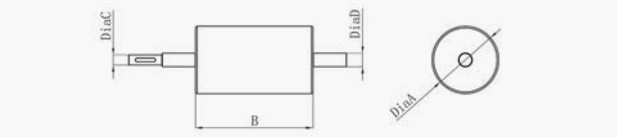

Magnetic Pulley-Specifications

Model

Dia. A

B

Dia. D

Dia. C

Weight(Kg)

PM2030

200

350

40

30

33

PM2040

200

450

40

30

42

PM2050

200

550

40

30

51

PM2060

200

650

40

30

60

PM2070

200

750

40

30

69

PM2080

200

850

40

30

78

PM2090

200

950

40

30

87

PM20100

200

1050

40

30

96

PM3030

300

350

50

40

74

PM3040

300

450

50

40

95

PM3050

300

550

50

40

116

PM3060

300

650

50

40

137

PM3070

300

750

50

40

158

PM3080

300

850

50

40

179

PM3090

300

950

50

40

200

PM30100

300

1050

50

40

221

PM4030

400

350

60

50

131

PM4040

400

450

60

50

168

PM4050

400

550

60

50

205

PM4060

400

650

60

50

242

PM4070

400

750

60

50

279

PM4080

400

850

60

50

316

PM4090

400

950

60

50

353

PM40100

400

1050

60

50

390
