41 Series Rectangle Steel Permanent Magnetic Chuck

41 Series Rectangle Steel Permanent Magnetic Chuck
Product Name : 41 Series Rectangle Steel Permanent Magnetic Chuck
Directions

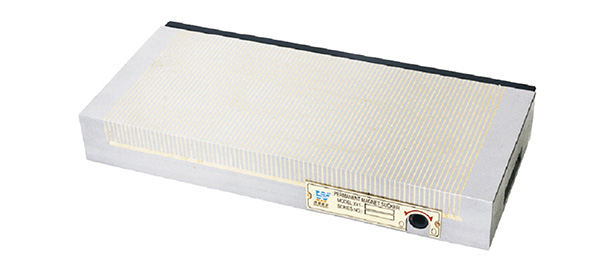

41 Series Rectangle Steel Permanent Magnetic Chuck

Product Description
Magnetic Chucks consists of wearable brass, steel and strong permanent magnets which is ideal for holding working pieces on grinding machine, EDM, carving machine, etc.

Features
1. Saving energy by permanent magnetic holding force.
2. Much safer than electric magnetic chuck because no risk of losing electric power and electricity leakage.
3. No change of plane accuracy during the switching on or off.
4. Holding force range is from 80, 100 , 120 to 140N/cm2.
5. Parallelism of most chuck's working plane is 0.03mm/100mm, also can be up to 0.005mm/100mm for special item.

Specifications




Model

Dimensions(mm)

NW(kg)

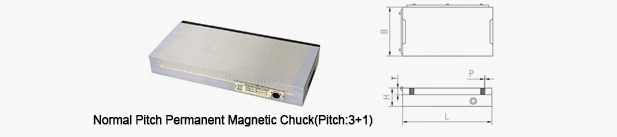

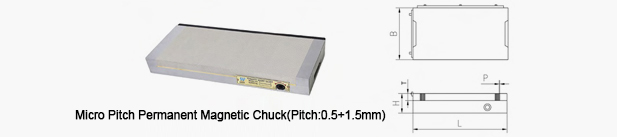

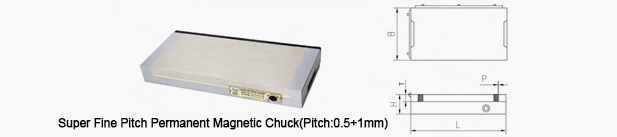

Pitch(mm)

Magnetic force
  (N/cm2)

L

B

H

T

PC41-1010

100

100

45

18

3.6

0.5+1.5
  or
  1+3
  or
  0.5+1

140
  or
  120
  or
  100
  or
  80

PC41-1670

160

70

45

18

4

PC41-1515

150

150

48

20

8

PC41-1520

200

150

48

20

11

PC41-1525

250

150

48

20

13.8

PC41-1530

300

150

48

20

16.8

PC41-1535

350

150

48

20

19.6

PC41-1540

400

150

53

20

23.8

PC41-1545

450

150

53

20

26.5

PC41-2020

200

200

48

22

15

PC41-2025

250

200

48

22

18.5

PC41-2035

350

200

53

22

28.5

PC41-2040

400

200

53

22

31.8

PC41-2045

450

200

53

22

39.5

PC41-2550

500

250

58

23

53.5

PC41-3060

600

300

58

23

77
