Magnetic Catcher

Magnetic Catcher
Product Name : Magnetic Catcher
Directions

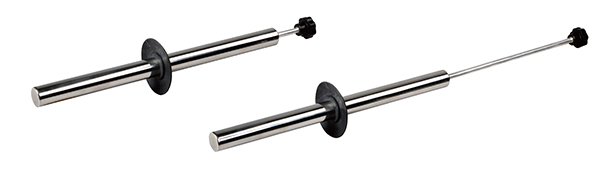

Magnetic Catcher

Features
It has a simple design and uses stainless steel tube, strong permanent magnet, and central long steel stem with plastic handle. The magnet was fixed with central steel stem. Iron bits can be caught and released by pulling and pushing the handle.

Applications
Magnetic catcher can catch or remove iron bits from liquid, powder, granules or grains easily. It catches small iron parts from electroplating tanks; removes iron dusts, chips from grinding machines, lathes and collects small needles or nail from grounds.

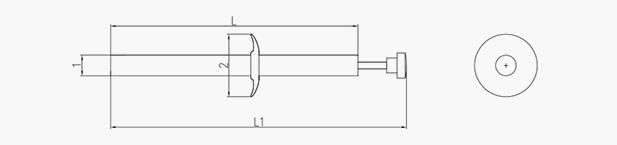

Magnetic Catcher(Specifications as below)

Model

Dimensions(mm)

Max operation temperature (°C)

WeightG

Ø1

L

Ø2

L1

MA25-300

25

300

76

360

<80

400

MA25-450

25

450

76

510

<80

450

MA25-500

25

500

76

560

<80

500
