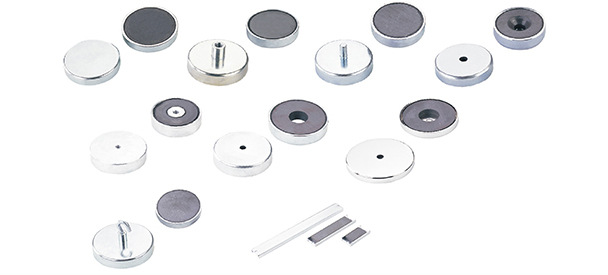

Ceramic Pot Magnet
Ceramic Pot Magnet
Features：
1. Simple structure properly designed with maximized magnetic force, saving cost.
Simple structure and cost saving due to a proper design with maximized magnetic force.
2. Magnets can be NdFeB, SmCo, ALNICO, Ferrite, etc.
3. Coating option：Zn, Ni, Cr, Painting, Rubber cover, etc.
4. Custom made is available for other special requests.
Application：
Pot Magnet are used for mounting, lifting, holding, fixing and transferring objects which is useful in the field of construction, engineering, automotive, etc or in the place of office, family, warehouse etc.

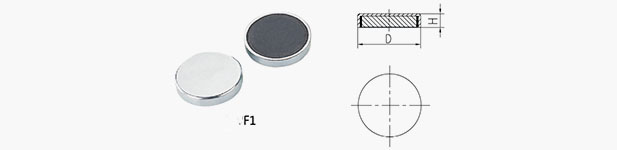

F1
Specifications：
Model | Dimensions(Mm) | Weight(G) | Force(N | |
D | H | |||
F1-10 | 10 | 4.5 | 2 | 4 |
F1-13 | 13 | 4.5 | 3 | 10 |
F1-16 | 16 | 4.5 | 4.5 | 18 |
F1-20 | 20 | 6 | 10 | 30 |
F1-25 | 25 | 7 | 19 | 40 |
F1-32 | 32 | 7 | 30 | 80 |
F1-36 | 36 | 8 | 42 | 100 |
F1-40 | 40 | 8 | 55 | 125 |
F1-47 | 47 | 9 | 80 | 180 |
F1-50 | 50 | 10 | 100 | 220 |
F1-57 | 57 | 10.5 | 140 | 280 |
F1-63 | 63 | 14 | 230 | 350 |
F1-80 | 80 | 18 | 485 | 600 |
F1-100 | 100 | 22 | 900 | 900 |

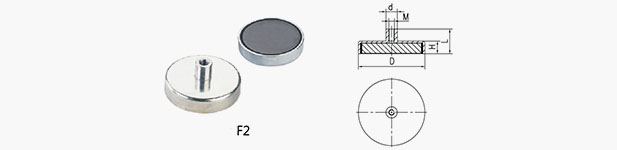

F2
Specifications：
Model | Dimensions(Mm) | Weight(G) | Force(N | ||||
D | H | d | L | M | |||
F2-10 | 10 | 4.5 | 6 | 11.5 | 3 | 3 | 4 |
F2-13 | 13 | 4.5 | 6 | 11.5 | 3 | 5 | 10 |
F2-16 | 16 | 4.5 | 6 | 11.5 | 3 | 6 | 18 |
F2-20 | 20 | 6 | 6 | 13 | 3 | 11 | 30 |
F2-25 | 25 | 7 | 8 | 15 | 4 | 22 | 40 |
F2-32 | 32 | 7 | 8 | 15 | 4 | 32 | 80 |
F2-36 | 36 | 7.7 | 8 | 16 | 4 | 45 | 100 |
F2-40 | 40 | 8 | 8 | 16.5 | 4 | 60 | 125 |
F2-47 | 47 | 9 | 8 | 17 | 4 | 90 | 180 |
F2-50 | 50 | 10 | 8 | 18.5 | 4 | 110 | 220 |
F2-57 | 57 | 10.5 | 8 | 18.5 | 4 | 145 | 280 |
F2-63 | 63 | 14 | 15 | 30 | 8 | 240 | 350 |
F2-80 | 80 | 18 | 20 | 34 | 10 | 520 | 600 |
F2-100 | 100 | 22 | 22 | 43 | 12 | 940 | 900 |
F2-125 | 125 | 26 | 25 | 50 | 14 | 1720 | 1300 |
