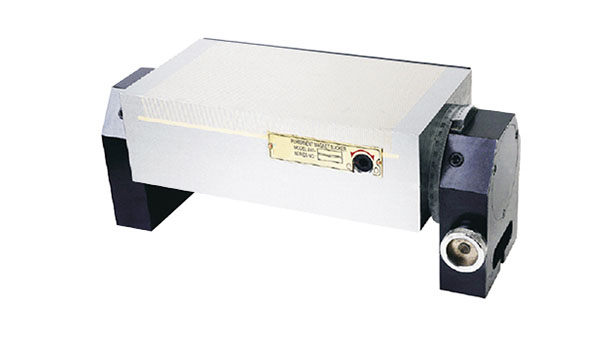

PC45 Rotary Mirco-Pitch Magnetic Chuck

Features
1. There are scales on main rotary shaft.
2. The chuck and main shaft is an whole piece.
3. The flat accuracy of working surface doesn't change during magnetic force by ON/OFF switch.
4. Addtional vernier ensures more accurate angle positioning.
5. Pitch: 0.5+1.5mm or 1+3mm or 0.5+1 are available.

Appications
Suitable for angle grinding or wire cutting of work piece.

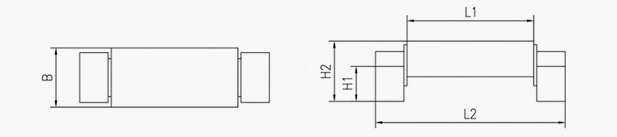

20151224163842401.jpg Specifications

Model

Dimensions(mm)

NW(Kg)

NW(Kg)

B

L1

H1

H2

L2

PC45-125x250

125

250

95

145

350

28.5

100

PC45-150x300

150

300

105

160

400

39.5

100

PC45-150x350

150

350

105

160

450

45.5

100

PC45-150x450

150

400

105

160

550

56.1

100
