Eccentric Type Eddy Current Separator

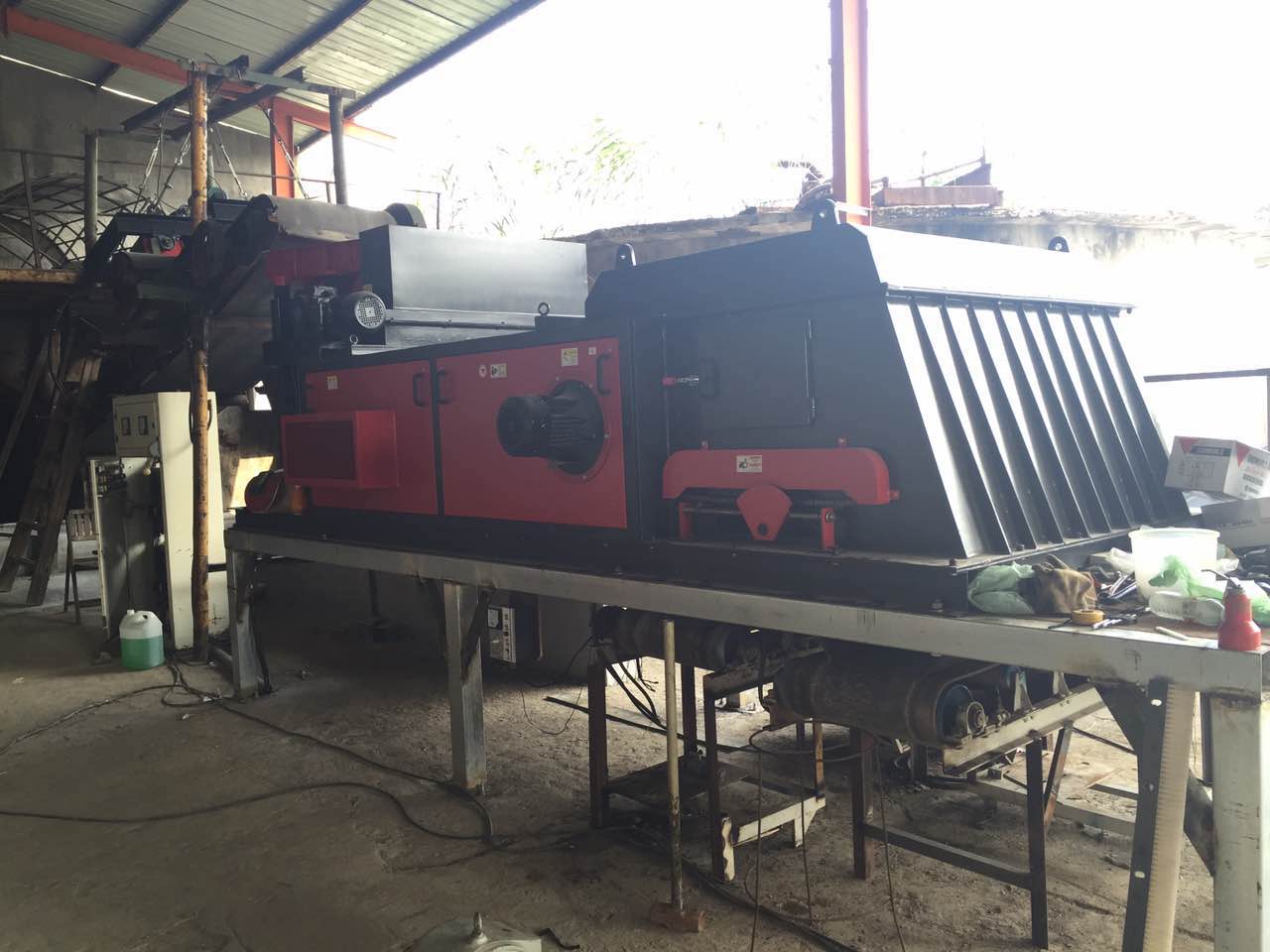

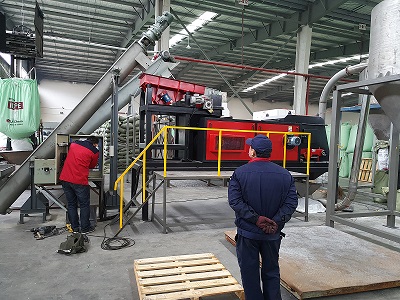

Onsite Operation

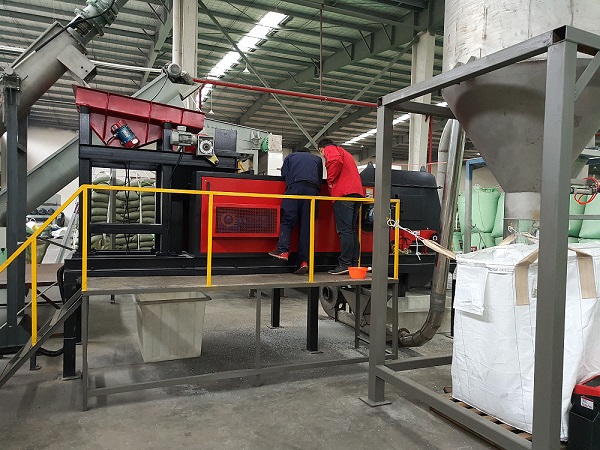

Onsite Operation
  Eddy Current Separator for aluminum
  Eddy Current Separator for non-ferrous metal
Eddy Current Separator
 Eddy Current Separation Equipment

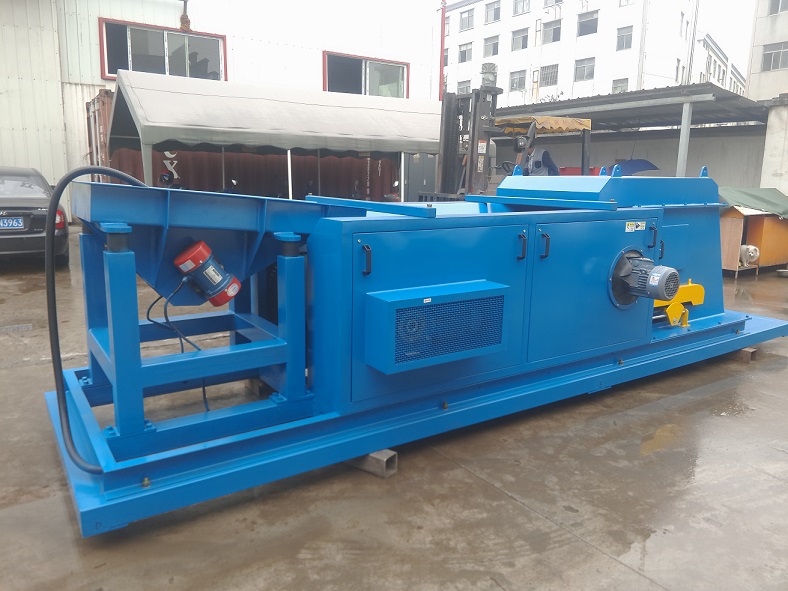

Product Name : Eccentric Type Eddy Current Separator
Product ID : 15
Directions

Product Description:

Eccentric non-ferrous metal sorting machine adopts eccentric magnetic rollers, compared with concentric magnetic rollers the separation effect is better.

Application Scope

Mainly used for industrial waste, garbage from the separation of copper, aluminum and other non-ferrous metals, for more fine sorting occasions.

Eccentric non-ferrous metal sorting machine can be widely used in waste disposal, waste car dismantling recycling, waste electrical recycling and other fields, as well as non-ferrous metal processing industry, such as materials processing industry.

Product Advantages:

◆ The use of eccentric magnetic roller, can effectively prevent the magnetic material into the magnetic roller surface, the effective protective magnetic roller and running belt.

◆ For relatively light, relatively small surface area of the material, sorting effect is better than concentric.

◆ intelligent touch control cabinet system, frequency control, run more stable and reliable.

◆ PLC programmable control, a key to start, simple operation.

bearings imported bearings, long life, good operation.

◆ magnetic roller with an effective magnetic system protection, to prevent high-speed operation when the magnetic system off.

◆ machine with a special process, precision build, equipment, running noise and vibration is minimal.

◆ machine installed a variety of detection and alarm devices, real-time monitoring of the operation of each key components.

Technical Parameters

Model

Feeding Belt

Power Consumption

Bearing

Overall Dimension

Width(Mm)

Length(Mm)

Particle Size

Capacity(M3/H)

Kw

Weight(Kg)

Length(Mm)

Width(Mm)

Height(Mm)

E-EC-5

500

1500

≥1mm2

6

7

730

4600

1760

1700

E-EC-6

600

10

895

1860

E-EC-6.5

650

15

950

1910

E-EC-8

810

20

1225

2060

E-EC-10

1015

25

1555

2260

E-EC-12

1215

30

1875

2460

E-EC-14

1420

1800

35

2275

4900

2660

E-EC-16

1600

2000

40

2850

5100

2860
