Electromagnetic Drum

Electromagnetic Drum

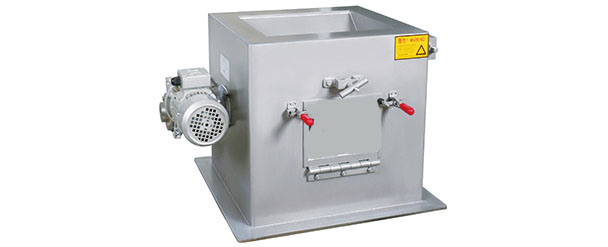

Product Name : Electromagnetic Drum
Directions

Electric Drum Magnetic Separator

Features

1. Separating unit is driven by gear motor.
2. Rotation speed and magnetic field angle is adjustable to ensure the best performance.
3. Continuous self-cleaning can fit the need of automatic production line.
4. Inlet and outlet, magnetic strength of separator is customizable.

Applications
Electric Drum Magnetic Separator can separate ferromagnetic impurities or paramagnetic materials from dry bulk powdery or granular materials in the automatic production line which is widely used in industries of plastic, cereal, food, chemicals, mining, pharmacy, etc. It is Ideal for high flow, heavy ferrous magnetic containment separating or sorting.



Electric Drum Magnetic Separator

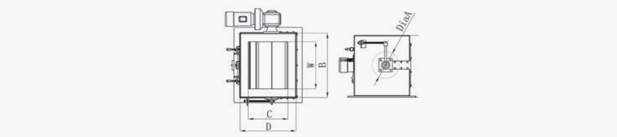

Specifications

Table 1

Model

Dimension(mm)

Weight(Kg)

kW

Dia. A

B

D

W

C

H

KMD-D2130

215

420

450

280

290

500

105

107

KMD-D2135

215

470

450

330

290

500

115

120

KMD-D2140

215

520

450

380

290

500

125

135

KMD-D2145

215

570

450

430

290

500

135

149

KMD-D2150

215

620

450

480

290

500

145

164

KMD-D2160

215

720

450

580

290

500

175

195

KMD-D2170

215

820

450

680

290

500

195

222

KMD-D2180

215

920

450

780

290

500

215

249

KMD-D2190

215

1020

450

880

290

500

225

280

KMD-D2110

215

1120

450

980

290

500

245

309

KMD-D3130

315

420

550

280

360

650

218

121

KMD-D3135

315

470

550

330

360

650

235

139

KMD-D3140

315

520

550

380

360

650

252

157

KMD-D3145

315

570

550

430

360

650

269

174.5

KMD-D3150

315

620

550

480

360

650

286

193

KMD-D3160

315

720

550

580

360

650

320

211

KMD-D3170

315

820

550

680

360

650

354

228

KMD-D3180

315

920

550

780

360

650

388

264



 Table 2

Model

Dimension(mm)

Weight(Kg)

kW

Dia. A

B

D

W

C

H

KMD-D3190

315

1020

550

880

360

650

422

300

KMD-D3110

315

1120

550

980

360

650

456

335

KMD-D3111

315

1220

550

1080

360

650

490

407

KMD-D4030

400

420

635

280

435

800

288

166

KMD-D4035

400

470

635

330

435

800

314

190

KMD-D4040

400

520

635

380

435

800

340

216

KMD-D4045

400

570

635

430

435

800

366

241

KMD-D4050

400

620

635

480

435

800

392

267

KMD-D4060

400

720

635

580

435

800

444

317

KMD-D4070

400

820

635

680

435

800

496

368

KMD-D4080

400

920

635

780

435

800

548

418

KMD-D4090

400

1020

635

880

435

800

600

469

KMD-D4010

400

1120

635

980

435

800

652

521

KMD-D4011

400

1220

635

1080

435

800

704

571

KMD-D4012

400

1320

635

1180

435

800

756

691
