Rotary Grate Electromagnetic Separator

Rotary Grate Electromagnetic Separator

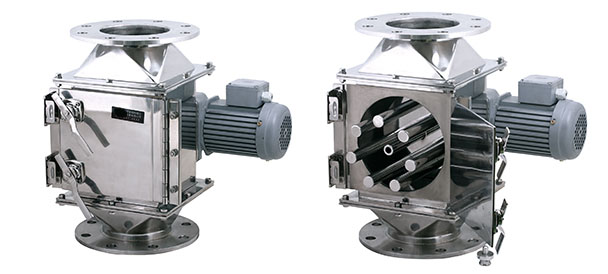

Product Name : Rotary Grate Electromagnetic Separator
Directions


Features

1. Quick dismountable designing for easy cleaning and installing.
2. The maximum magnetic strength can reach 12000GS and the standard working temperature is lower than 80
℃. The maximum working temperature can reach 350℃ as required.
3. The quantity of magnetic bar can be increased or reduced according to the material sorts.
4. Square chute or round pipeline flange is available for different connections.
5. Rotating magnetic bar can prevent the material from clogging

 Applications

Rotary Grate Magnet Separator are widely used in field of building materials, chemical, mining, food, refractory and pharmacy, which are designed for removing Ferrous scraps from powder or graininess materials, especially for those high viscosity or poor fluidity materials that is prone to caking or bridging.

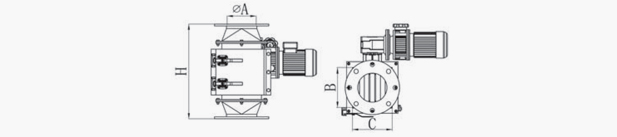

Specifications

Model No

Dimension(mm)

No. of rods

Weight(Kg)

ΦA

B

C

H

kW

MRG150

150

205

208

450

0.25

7

43

MRG200

200

255

258

500

0.25

9

54

MRG250

250

305

308

550

0.25

11

62

MRG300

300

355

358

600

0.37

13

72

MRG350

350

405

408

650

0.37

15

84

MRG2020

-

205

208

270

0.25

7

29

MRG2525

-

255

258

320

0.25

9

38

MRG3030

-

305

308

370

0.25

11

43

MRG3535

-

355

358

420

0.37

13

52

MRG4040

-

405

408

450

0.37

15

62.5
