Hump Magnet

Hump Magnet
Hump Magnet
Hump Magnet

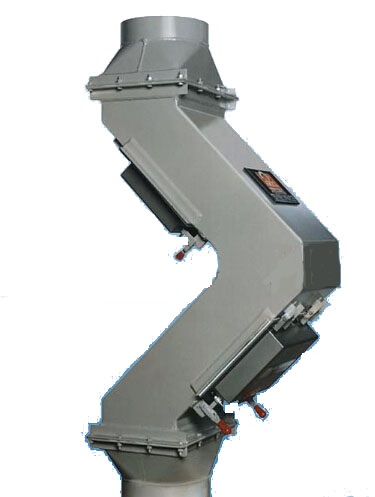

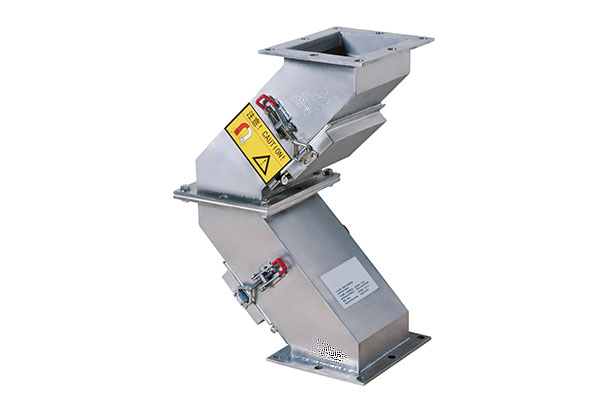

Product Name : Hump Magnet
Directions

Hump Magnet

Product Description
KMD (Kemeida) Hump Magnets are developed for height restriction situation where full Hump Magnets cannot be used.

Features
1. An subdivision of plate magnet.
2. Magnetic plate can be made from rare earth magnet or ferrite magnets as per customer’s request,304 or 316 SS for Housing material is available.
3. Slope design of magnet plate can avert material clogging and it can also break clumped products to improve separation efficiency.;
4.Simple structure, easy cleaning and assembling.
5. Inlet, outlet and any other special requirements are customizable.



Applications
Hump Magnets are used to remove large pieces of tramp iron as well as ferrous fragments from gravity-flow materials or material flow activated by wind in enclosed flow lines before they reach storage bins or processing equipment. They can be mounted in spouting lines or on the processing machines.


Hump Magnet

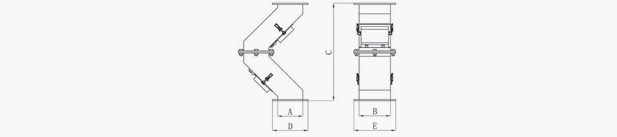

Ferrite Hump Magnet Specifications
:

Model

Dimension(mm)

Weight(Kg)

A

B

C

D

E

KMDFHM120

120

150

470

170

200

15

KMDFHM150

150

178

750

250

220

37

KMDFHM200

200

178

750

300

220

49

KMDFHM250

250

178

750

350

220

61

KMDFHM300

300

178

750

400

220

73

KMDFHM350

350

200

1110

450

300

141

KMDFHM400

400

200

1110

500

300

161

KMDFHM450

450

200

1110

550

300

181

KMDFHM500

500

200

1110

600

300

201



NdFeB Hump Magnet Specifications

Model

Dimension(mm)

Weight(Kg)

B

A

C

E

D

KMDNHM120

150

120

470

170

200

14

KMDNHM150

178

150

750

250

220

33

KMDNHM200

178

200

750

300

220

44

KMDNHM250

178

250

750

350

220

55

KMDNHM300

178

300

750

400

220

66

KMDNHM350

200

350

1110

450

300

128

KMDNHM400

200

400

1110

500

300

146

KMDNHM450

200

450

1110

550

300

164

KMDNHM500

200

500

1110

600

300

182
