Magnetic Drawer

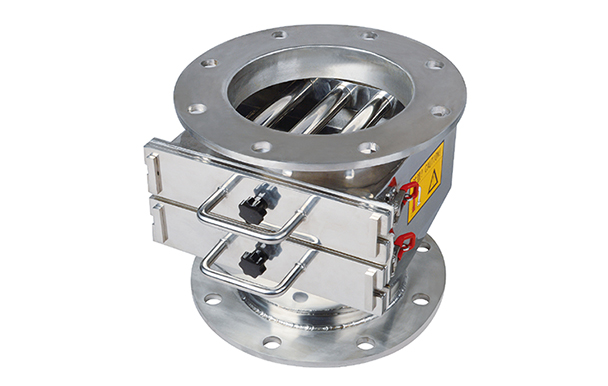

Magnetic Drawer
Product Name : Magnetic Drawer
Directions

N Style magnetic drawer

Features
1. Normal magnetic drawer(N Style) can reach maximum magnetic strength of12000GS for normal (N Style) magnetic drawer while 8000GS for easy cleaning (E Style).
2.Square or round flange of entry is available to suit each customer’s requirement for easy installation.
3.Standard working temperature≤80
, and maximum working temperature can reach 350 as required.
4.The magnetic grid in the drawer with one row or two rows or more rows can be produced according to customers’ requirements.
5.304 or 316L SS housing is available for pipeline materials.

Applications
Magnetic Drawers are widely used in field of ceramics, chemicals, pharmacy, food, plastic, rubber, dyestuff, mining and environmental protection, which are designed for removing Ferrous scraps from dry powder, strip or graininess materials such as sugar, grain, tea etc.

d stand for double rows

s stand for single row

N stand for standard type

R stand for round flange top

S stand for square flange top

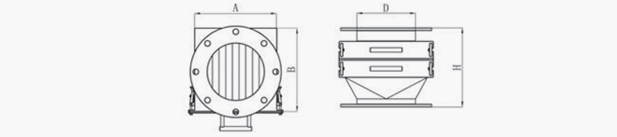

Specifications

Model

Dimension(mm)

Weight(Kg)

D

H

A

B

KMDd-NR-150

159

286

208

205

20

KMDd-NR-200

219

286

258

255

28

KMDd-NR-250

273

286

308

305

33

KMDd-NR-300

325

286

358

355

43

KMDs-NR-150

159

216

208

205

16

KMDs-NR-200

219

216

258

255

20

KMDs-NR-250

273

216

308

305

24

KMDs-NR-300

325

216

358

355

31

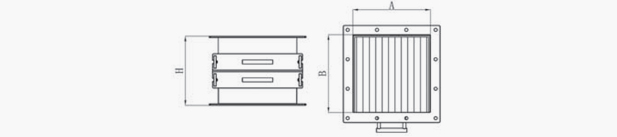

Specifications

Model

Dimension(mm)

Weight(Kg)

D

H

A

B

KMDd-NS-2020

270

208

205

16.5

16.5

KMDd-NS-2525

270

258

255

25.5

25.5

KMDd-NS-3030

270

308

305

32.5

32.5

KMDd-NS-3535

270

358

355

39

39

KMDd-NS-4040

270

408

405

50

50

KMDs-NS-2020

200

208

205

12.5

12.5

KMDs-NS-2525

200

258

255

19.5

19.5

KMDs-NS-3030

200

308

305

23.2

23.2

KMDs-NS-3535

200

358

355

27

27

KMDs-NS-4040

200

408

405

35.5

35.5
