J-Magnetics-Your reliable magnetic separation equipment solution provider!

Spouting Magnet

Spouting Magnet
Product Name : Spouting Magnet
Directions

Spouting Magnet
Product Description

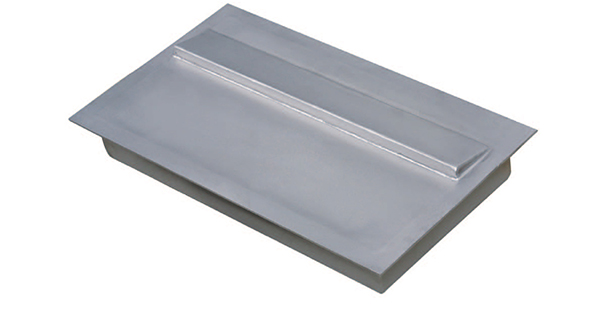

Spouts Plate magnets are designed to remove tramp ferrous from high volume material flow or rapid material flow. Properly designing can prevent wash-off of ferrous tramps and fines.

Features
1. Plate with different magnetic action range and strong magnetic strength are available.
2. Easy cleaning and assembling.
3. Housing material is stainless steel 304 or 316L which is no pollution to materials.
4. Magnetic plate with different dimensions and extra parts like hinge, handle and mounting hole can be custom made.

Applications
Plate magnet can remove tramp iron such as Bolts, Nuts, Bits of Wire, Nails and other casual impurities from free flowing materials, like gravel, corn, sugar, plastic, flour and other granular materials in the conveying course.

Specifications

Model

Dimension(mm)

Magnets Action   Range

Weight(Kg)

B

D

T

KMD-SM60

250

175

51

60

5.8

KMD -SM120

300

225

76

120

10.5

KMD-SM150

450

360

111

150

19.2

KMD-EP60

190

125

36

60

3.8

KMD-EP120

250

175

46

120

6

KMD -EP150

330

240

56

150

10.4
