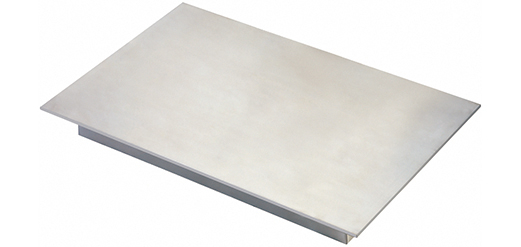

Flushing Face Plate Magnet

Flushing Face Plate Magnet
Product Name : Flushing Face Plate Magnet
Directions

Flushing Face Plate Magnet:
Product Description

Flush Face Plate Magnets have ideal metal separation performance when assembled over the flow chute or belt with low-density product flows. Downstream processing facilities will be under continuous protection because plate magnets can lift ferrous tramps out of the product stream.

Features
1. Plate with different magnetic action range and strong magnetic strength are available.
2. Easy cleaning and assembling.
3. Food grade SS 304 or 316 housing materials, no contamination to products.
4. Magnetic plate with different dimensions and extra parts like hinge, handle and mounting hole can be customized.

Applications
Plate magnet can remove tramp iron such as Bolts, Nuts, Bits of Wire, Nails and other casual impurities from flowing materials, like gravel, corn, sugar, plastic, flour and other granular materials in the conveying course.


Flushing Face Plate Magnet

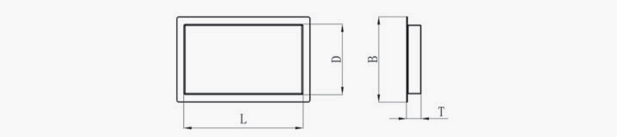

Specifications

Model

Dimension(mm)

Weight(Kg)

B

D

T

KMDMP-FF60

250

175

51

5.7

KMDMP-FF120

300

225

76

10.4

KMDMP-FF150

450

360

111

19.1

KMDNMP-FF60

190

125

36

3.7

KMDNMP-FF120

250

175

46

5.9

KMDNMP-FF150

330

240

56

10.3

Note: Length of plate magnet can be modified as per user’s request.
