PC42 Series Sine Plate with Fine Magnetic Chuck

PC42 Series Fine Plate with Fine Magnetic Chuck

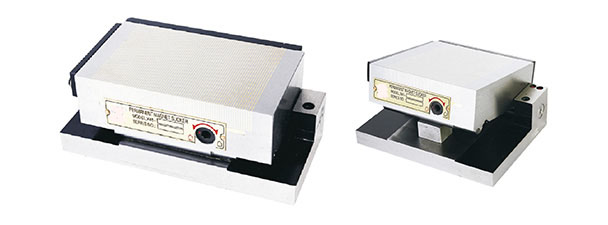

Product Name : PC42 Series Sine Plate with Fine Magnetic Chuck
Directions

PC42 Series Sine Plate with Fine Magnetic Chuck

Features
1. The base is made of high-quality steel, hardened by heat treatment.
2. Angles precision is obtained by the gauge block.
3. Parallelism of the chuck is 0.005mm/100mm .
4. Pitch: 0.5+1.5mm or 1+3mm or 0.5+1 are available.

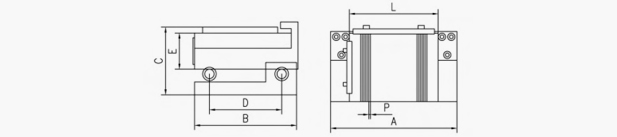

20151224163707690.jpg Specifications

Model

Dimensions(mm)

Tilt Deg.

NW(Kg)

Magnetic Force
  (N/CM2)

L

B

C

D

E

A

PC42-10175

175

100

86

75

48

255

0-60°

11.5

100

PC42-1515

150

150

86

100

48

200

0-60°

15

100

PC42-1530

300

150

86

100

48

350

0-60°

32

100

PC42-12525

250

125

86

75

48

300

0-60°

19.5

100




Inquiry
