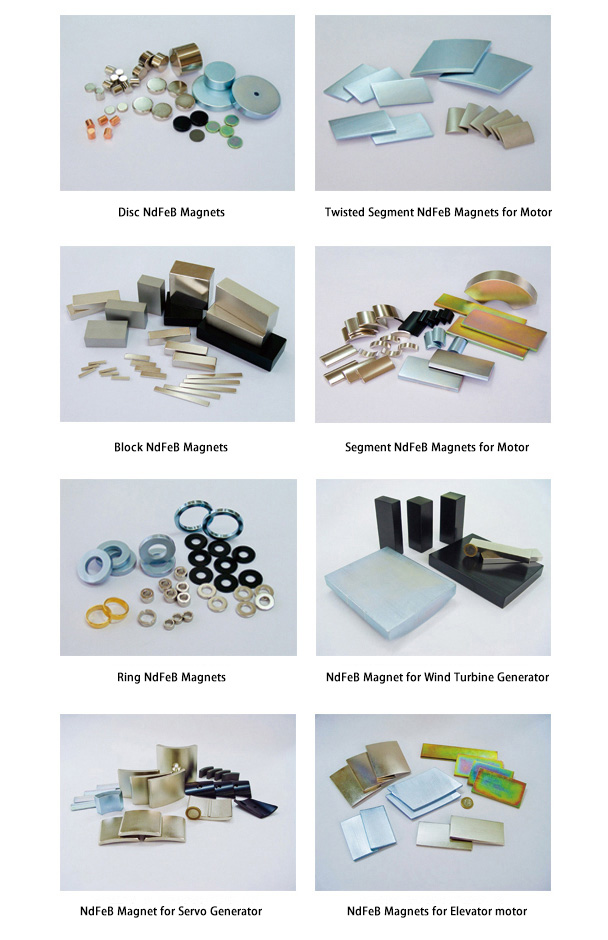

Sintered NdFeB Magnets
Sintered NdFeB Magnets
Product Description：
1.Max working temperature is only for reference which epends on the circuit what the magnet is applied for. 2.When L/D ratio of testing piece is eaqual to 0.7,the open flux irreversible loss at Max.Working Temperature less/eaqual 5% is guaranteed.(Lmeans magnetization direction length,D means diameter of magnetic pole surface.) 3.We suggest users to consult us on any application when the magnet’s temperature is near to 150℃.
Specifications：
Grade | Remanence(Br) | Coercivity(Hcb) | Intrinsic Coercivity Force (Hcj) | Max. Energy Product (BH)m | Working Temp. | ||||||||||
kGs | T | KOe | KA/m | ℃ | KA/m min. | MGOe | KJ/m3 | ℃ | |||||||
Nom. | Min. | Nom. | Min. | Nom. | Min. | Nom. | Min. | Nom. | Min. | Nom. | Min. | ||||
N35 | 12.1 | 11.7 | 1.21 | 1.17 | 11.5 | 10.8 | 915 | 860 | ≥12 | ≥955 | 35 | 33 | 279 | 263 | ≤80 |
N38 | 12.6 | 12.2 | 1.26 | 1.22 | 11.5 | 10.8 | 915 | 860 | ≥12 | ≥955 | 38 | 36 | 303 | 287 | ≤80 |
N40 | 12.9 | 12.6 | 1.29 | 1.26 | 11 | 10.5 | 876 | 836 | ≥12 | ≥955 | 40 | 38 | 318 | 303 | ≤80 |
N42 | 13.2 | 12.6 | 1.32 | 1.26 | 11 | 10.5 | 876 | 836 | ≥12 | ≥955 | 42 | 40 | 334 | 318 | ≤80 |
N45 | 13.7 | 13.3 | 1.37 | 1.33 | 11 | 10.5 | 876 | 836 | ≥12 | ≥955 | 45 | 43 | 358 | 342 | ≤80 |
N48 | 14.1 | 13.7 | 1.41 | 1.37 | 10.8 | 10.2 | 860 | 812 | ≥12 | ≥955 | 48 | 46 | 383 | 367 | ≤80 |
N50 | 14.5 | 14.1 | 1.45 | 1.41 | 10.8 | 10.2 | 860 | 812 | ≥12 | ≥955 | 50 | 48 | 398 | 383 | ≤80 |
N35M | 12.1 | 11.7 | 1.21 | 1.17 | 11.6 | 11 | 924 | 876 | ≥14 | ≥1114 | 35 | 33 | 279 | 263 | ≤100 |
N38M | 12.6 | 12.2 | 1.26 | 1.22 | 11.8 | 11.4 | 939 | 907 | ≥14 | ≥1114 | 38 | 36 | 303 | 287 | ≤100 |
N40M | 12.9 | 12.6 | 1.29 | 1.26 | 12.2 | 11.8 | 971 | 939 | ≥14 | ≥1114 | 40 | 38 | 318 | 303 | ≤100 |
N42M | 13.2 | 12.9 | 1.32 | 1.29 | 12.6 | 12.2 | 1003 | 971 | ≥14 | ≥1114 | 42 | 40 | 334 | 318 | ≤100 |
N45M | 13.7 | 13.3 | 1.37 | 1.33 | 12.8 | 12.4 | 1019 | 987 | ≥14 | ≥1114 | 45 | 43 | 358 | 342 | ≤100 |
N48M | 14.1 | 13.7 | 1.41 | 1.37 | 12.8 | 12.4 | 1019 | 987 | ≥14 | ≥1114 | 48 | 46 | 383 | 367 | ≤100 |
N33H | 11.7 | 11.4 | 1.17 | 1.14 | 11 | 10.3 | 876 | 820 | ≥17 | ≥1353 | 33 | 31 | 263 | 247 | ≤120 |
N35H | 12.1 | 11.7 | 1.21 | 1.17 | 11.5 | 10.8 | 915 | 860 | ≥17 | ≥1353 | 35 | 33 | 279 | 263 | ≤120 |
N38H | 12.6 | 12.2 | 1.26 | 1.22 | 12 | 11.5 | 955 | 915 | ≥17 | ≥1353 | 38 | 36 | 303 | 287 | ≤120 |
