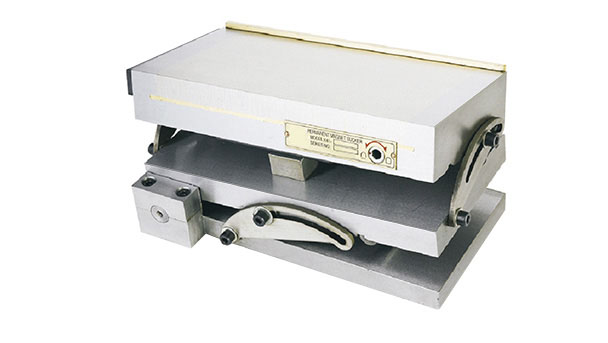

PC43 Series Double Sine Plate Chuck

PC43 Series Double Sine Plate Chuck
Product Name : PC43 Series Double Sine Plate Chuck
Directions

PC43 Series Double Sine Plate Chuck

Features
1. Suitable for high-precision angle grinding processing at the front and back angles or the left and right angles.
2. Pitch: 0.5+1.5mm or 1+3mm or 0.5+1 are available.


PC43 Series Double sine plate chuck

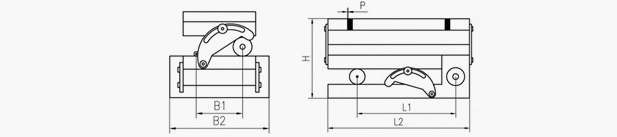

Specifications

Model

Dimensions(mm)

Tilt Deg.

NW(Kg)

Magnetic Force (N/CM2)

L

B

C

D

E

PC -10175

100

225

110

75

100

0-60°

12.6

100

PC43-1515

100

200

115

100

150

0-60°

17

100

PC43-1530

150

300

115

100

150

0-60°

34.5

100

PC43-12525

150

250

115

100

125

0-60°

23

100
