Self-cleaning Magnetic Grate Separator

Self-cleaning Magnetic Grate Separator
Product Name : Self-cleaning Magnetic Grate Separator
Directions

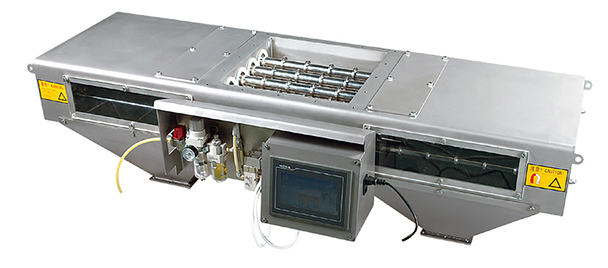

Self-cleaning Magnetic Grate Separator
Product Description
Program Controlled Pneumatic Magnetic Separator, also named Self Cleaning Magnetic Grate Separator, is designed for continuously production line to remove Ferro scraps from the materials without any interruption.

Features
1. Ferro scraps automatic self-cleaning.
2. Touch screen control.
3. No interruption to current flow process.
4. Super performance of removing Ferro scraps, standard power 8500GS at standard working temperature(≤80
) as listed specification. As required, we can design it up to maximum 10,000GS of magnetic strength with 250 ultimate working temperature.
5. Two row magnetic grids for the standard model as listed. As required, specification of customer is also available.

Applications
Automatic removing ferrous or paramagnetic scraps from dry powder or graininess materials such as sugar, grain, tea, flour etc.

 Specifications

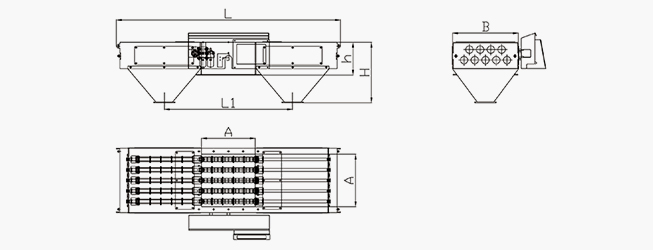

1. Self-cleaning Magnetic Grate Separator list for square inlet and outlet


Specifications

MODEL NO

Dimension(mm)

No. of rods

A

B

h

H

L1

L

1st layer

2nd layer

S-PCPS40/40SN

400

490

250

460

955

1669

4

5

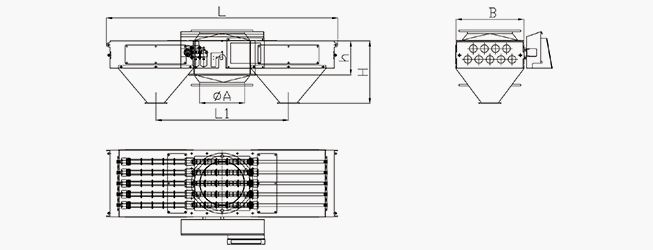

1. Self-cleaning Magnetic Grate Separator list for round inlet and outlet

MODEL NO

Dimension(mm)

No. of rods

∅A

B

h

H

L1

L

1st layer

2nd layer

S-PCPS 300RN

325

490

250

460

955

1669

4

5
