X-ray Inspection System for Residual Bone Fragments

X-ray Inspection System for Residual Bone Fragments
Product Name : X-ray Inspection System for Residual Bone Fragments
Directions

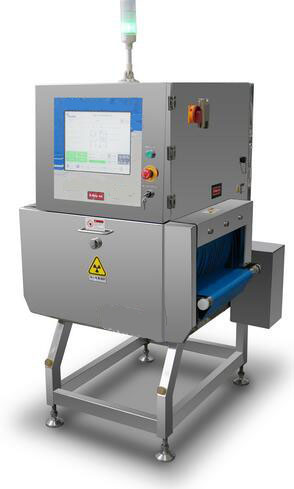

X-ray Inspection System for Residual Bone Fragments




Suitable for in-line inspection of the residual bone fragments in meat processing, For instance, it is suitable for inspecting the residual collarbones, fan rib, shoulder blades etc in chicken.

X-ray Inspection System KMD-BDE Series

·         1. Compared with traditional single-energy inspection, KMD-BDE series applies to dual-energy X-ray inspection technology, achieving higher sensitivity and inspection rate

·         2. KMD-BDE series can identify foreign bodies such as rubber, bone with near density

·         3. Without effect caused by irregular and overlap






Specifications:

Model

KMD-4080BDE

X-ray Tube

MAX. 80Kv, 320W

Maximum Inspection Width

400mm

Maximum Inspection Height

100mm

Best Inspection Ability

SUS BallΦ0.3mm,SUS WireΦ0.2*2mm

Conveyor Speed

10-40m/min





Operating Environment



Temp: -10~40°C

Cooling Method: Industrial Air Conditioning

Humidity: 30-90%, Frosting-free

Humidity Control: Dehumidifier

X-ray Leakage

< 1 Micro Sievert per hour

Protection Method

Removable Protective Curtain

Alarm

Sound and light alarm; Rejector is optional

Power Supply

AC220V, 15Kva Max, 50/60Hz

Levels of Protection

IP66

Main Material

SUS304


For model selection, please kindly fill out below table for our reference.

Product Name


Product Photo


Product type

 (01)Dry       (02) Frozen     (03) Fresh   with  ____% wet

Packing

 (01)Nude    (02)   Plastic      (03) Paper       (04)Aluminum foil bag

Product   Height(mm)

Max

Product   Width (mm)

Max

Product   Length(mm)

Max

Product   Weight (g)

Max

Environment   Temp.

 Normal    _         _   OC    Max.    _______  OC    Min.     _______  OC

Environment

 Wet              Dry       Humid                   %



Detect   out

(01)All kinds of metal          (02)Mainly ferrous          (03)Ceramics

(04)Glass                            (05)Bone                         (06)Hard   rubber          (07)Hard plastic                                     (09) others  _         _

Frame   material

 Stainless   steel

Sensitivity   Requirement

 Fe____mm   Sus304____mm  Glass___mm   Ceramics_____mm

Conveyor   speed

____m/min (Steady)         Special _____m/min(Adjustable)

Reject   method

 (01) Stop and   alarm         (02)   Rejecter(the spacing between two products is    _________mm)

Power

Above  _         _ W     Below    _         _ W

Other   requirements
