Metal Detector for Biscuits

Metel Detector

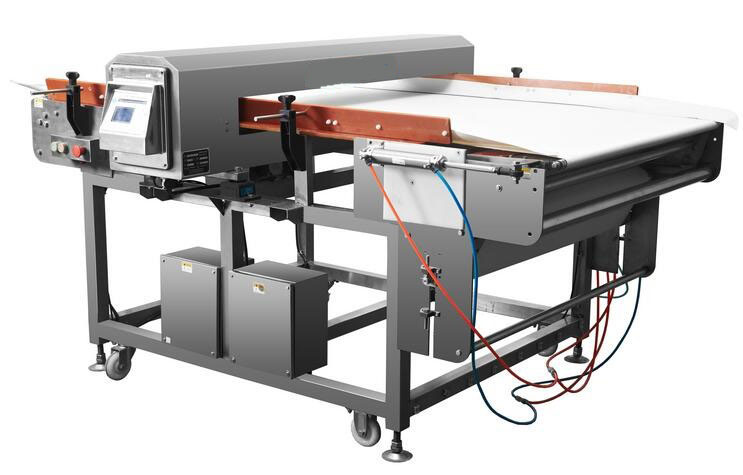

Product Name : Metal Detector for Biscuits
Directions

Metal Detector for Biscuits



Professional metal detection in bakery, special design for the concrete biscuit production line, high sensitivity and stability detection of Ferrous metal (Fe), Non-Ferrous metals (Copper, Aluminum) and SS(Stainless steel.)

Metal Detector KMD-I-B Series

·         1. Seamless connection for docking with the various types of production lines

·         2. Unique design of pneumatic retracting band type rejecter, parallel rejecting to prevent the products from being disordered

·         3. High temperature resistance

·         4. Simple to disassemble, easy to clean

Specifications

Model

KMD-I-B

Specifications

60,80,100,120

Detection Width

600mm,800mm,1000mm,1200mm

Detection Height

50~80mm

200mm

Sensitivity

Fe

Φ0.8mm

Φ1.2mm

SUS304

Φ1.5mm

Φ2.0mm

Belt Width

560mm,760mm,960mm,1160mm

Conveyor Belt

Food Grade PVC (PU and Chain Conveyor   optional)

Belt Speed

Fixed 15m/min (Variable speed is optional)

Rejecter

Pneumatic Retracting Band Type

Power Supply

AC220V (Optional)

Main Material

SUS304

Note

·         1. The technical parameter above namely is the result of sensitivity by detecting only the test sample on the belt. The sensitivity would be affected according to the products being detected, working condition and also the different positions the metal mixed with.

·         2. Requirements for different sizes by customers can be fulfilled.
