Conveyor Belt Metal Detector
Suitable for metal contaminants detection in various industries like: Aquatic Products, Meat & Poultry, Salted Products, Pastry, Nuts, Vegetables, Chemical Raw Materials, Pharmacy, Cosmetics, Toys.
Detecting all metal contaminants in packaged and non-packaged food, including ferrous metal (Fe), non-ferrous metals (Copper, Aluminum etc.) and Stainless Steel.

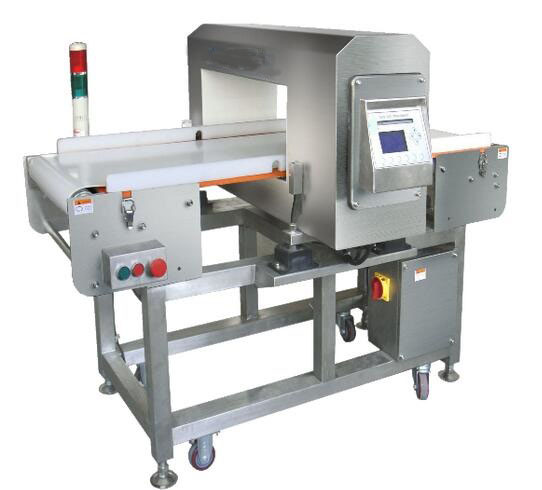

Metal Detectors KMD-I Series
1. Stable and high sensitivity
2. Auto-setting function
3. User friendly function
4. Dust and water proof, easy to be cleaned

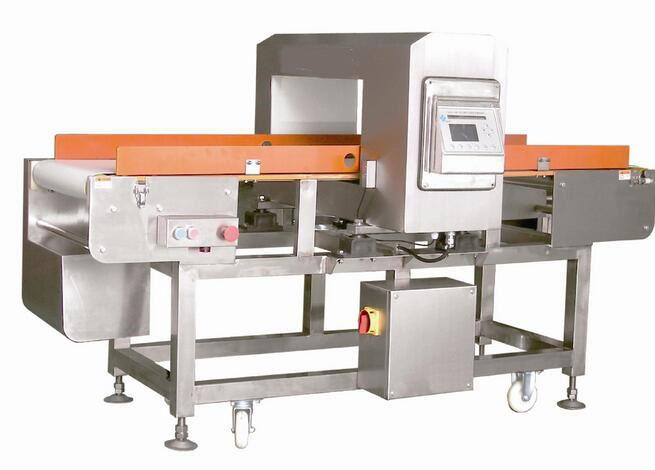

Metal Detectors KMD-II Series
1. New function
2. Hardware structure optimization
3. User friendly function
4. IP66 Dust & Water Proof
Specifications
Model | KMD-I | KMD-II | |||
Detection Width | 400mm | 500mm | 400mm | 500mm | |
Detection Height | 80mm,120mm 150mm,180mm | 200mm 250mm | 80mm,120mm 150mm,180mm | 200mm 250mm | |
Sensitivity | Fe | Φ0.5mm,Φ0.6mm Φ0.7mm,Φ0.8mm | Φ1.0mm Φ1.2mm | Φ0.5mm,Φ0.6mm Φ0.7mm,Φ0.8mm | Φ1.0mm Φ1.2mm |
SUS304 | Φ1.0mmΦ1.2mm Φ1.5mmΦ2.0mm | Φ2.0mm Φ2.5mm | Φ0.8mm,Φ1.0mm Φ1.2mm,Φ1.5mm | Φ1.5mm Φ2.0mm | |
Belt Width | 360mm | 460mm | 360mm | 460mm | |
Loading Capacity | 5kg~10kg | 20kg~100kg | 5kg~10kg | 20kg~100kg | |
Display Mode | LCD Liquid Crystal (FDM touch screen is optional) | ||||
Operation Mode | Button Input (touch input is optional) | ||||
Product Storage Quantity | 52 kinds | ||||
Packing Form | Standard plastic or cardboard, metal film (aluminum) and bulk | ||||
Conveyor Belt | Food Grade PVC (PU and Chain Conveyor are optional) | ||||
Belt Speed | Fixed 25m/min (Variable speed is optional) | ||||
Alarm | Alarm and belt stops (Alarm lamp and rejecter are optional) | ||||
Power Supply | AC220V (Optional) | ||||
Main Material | SUS304 | ||||
Note:
1. The technical parameter above namely is the result of sensitivity by detecting only the test sample on the belt. The sensitivity would be affected according to the products being detected, working condition and also the different positions the metal mixed with.
2. Requirements for different sizes by customers can be fulfilled.
