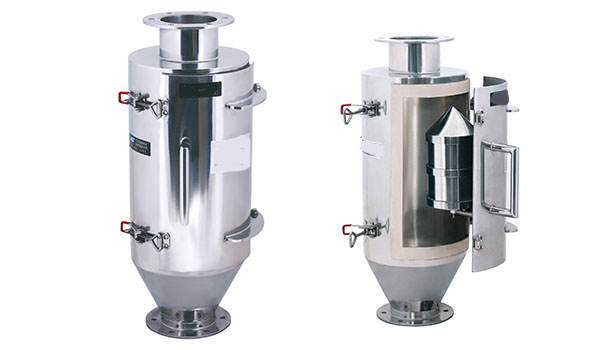

Bullet Magnet

Bullet Magnet
Product Name : Bullet Magnet
Directions

Bullet Magnet

Features
1. The bullet shape cone ensures the material flows under a proper magnetic field.
2. The magnetic strength range of cone is from 3,000GS to 15,000GS which ensures that Ferrous scraps can be hold firmly.
3. Designed for quick and easy cleaning: just open the cover and clean the magnet.
4. Customized requirement is available.

Applications
Bullet Magnet is an efficient device for removing large pieces of iron from pipelines system, which is widely used in the process of flour mill, grain mill, plastics, kaolin and French chalk.20151224155243433.jpgSpecifications

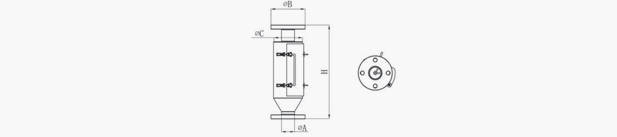

MODEL NO

Dimension(mm)

Weight(Kg)

ΦA

B

C

H

KMD-BM50

51

150

114

380

9

KMD-BM65

76

185

168

540

20

KMD-BM100

100

165

219

586

34

KMD-BM150

150

225

273

655

48.5

KMD-BM200

198

275

355

760

100

KMD-BM250

248

325

426

850

121

KMD-BM300

298

395

480

880

143

KMD-BM400

395

480

610

1100

227

KMD-BM
