N Style Normal Magnetic Grate

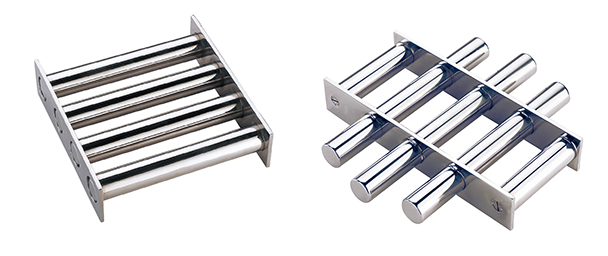

N Style Normal magnetic grate
Features：
1. 304 or 316L SS is available for frame and tube which shows good corrosion resistance.
2. Standard magnetic grates are assembled with stainless steel frame and magnetic bars with a length of 25 mm diameter.
3. The surface of the frame and magnetic bar can be fine polished and meet the standard of food or pharmacy industry.
4.Standard working temperature≤80℃, and maximum working temperature can reach 350℃ as required.
5. Normal (N style), Easy-cleaning (E style), grate with angle baffles or rod are available.
Applications：
Magnetic Grate is installed or simply laid-inside of hopppers,housings,and bins to trap and hold ferrous fines,fragments,small ferrous objects.Please be aware that these grates are built for low-abrasion materials.
Square Shape Series
Specifications：
Model | Dimension(mm) | Bars | Weight(Kg) | ||
A | B | H | |||
KMDMG10/10S | 100 | 100 | 40 | 2 | 1 |
KMDMG15/15S | 150 | 150 | 40 | 3 | 2.2 |
KMDMG20/20S | 200 | 200 | 40 | 4 | 3.7 |
KMDMG25/25S | 250 | 250 | 40 | 5 | 5.5 |
KMDMG30/30S | 300 | 300 | 40 | 6 | 8 |
KMDMG35/35S | 350 | 350 | 40 | 7 | 10 |
KMDMG40/40S | 400 | 400 | 40 | 8 | 13.5 |
KMDMG45/45S | 450 | 450 | 40 | 9 | 17 |
KMDMG50/50S | 500 | 500 | 40 | 10 | 20.5 |

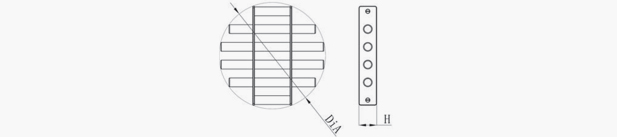

Round Shape Series
Specifications：
Model | Dimension(mm) | Weight(Kg) | ||
Dia. | H | Bars | ||
KMDMG-R100 | 100 | 100 | 2 | 0.9 |
KMDMG-R150 | 150 | 150 | 3 | 1.5 |
KMDMG-R200 | 200 | 200 | 4 | 2.5 |
KMDMG-R250 | 250 | 250 | 5 | 3.7 |
KMDMG-R300 | 300 | 300 | 6 | 5.5 |
KMDMG-R350 | 350 | 350 | 7 | 7.5 |
KMDMG-R400 | 400 | 400 | 8 | 10 |
KMDMG-R450 | 450 | 450 | 9 | 12.3 |
KMDMG-R500 | 500 | 500 | 10 | 15.5 |
