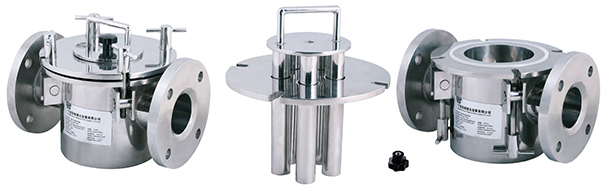

Easy-Clean Magnetic Liquid Trap:
Product Name : Easy-Clean Magnetic Liquid Trap:
Directions
Easy-Clean Magnetic Liquid Trap:
Magnetic Strenth:The highest is 8,000.00Gause
Style: The Maximum magnetic strength: 8,000GS（0.810.2T）

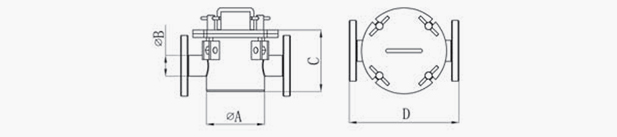

SPECIFICATIONS：
Model | Dimension(mm) | Nos. of rod | Weight(Kg) | |||
ΦA | ΦB | C | D | |||
FL150/25 | 159 | 32 | 167 | 300 | 5 | 12 |
FL150/32 | 159 | 38 | 167 | 300 | 5 | 17 |
FL150/40 | 159 | 45 | 167 | 300 | 5 | 18 |
FL150/50 | 159 | 57 | 167 | 300 | 5 | 21 |
FL150/65 | 159 | 76 | 167 | 300 | 5 | 23 |
FL200/50 | 200 | 57 | 206 | 350 | 7 | 27 |
FL200/65 | 200 | 76 | 206 | 350 | 7 | 29 |
FL200/80 | 200 | 89 | 206 | 350 | 7 | 30 |
FL200/100 | 200 | 108 | 228 | 350 | 7 | 33 |
FL250/80 | 250 | 89 | 250 | 400 | 9 | 40 |
FL250/100 | 250 | 108 | 250 | 400 | 9 | 42 |
FL250/125 | 250 | 138 | 250 | 400 | 9 | 44 |
FL250/150 | 250 | 159 | 300 | 400 | 9 | 50 |
FL300/125 | 300 | 138 | 300 | 450 | 9 | 58 |
FL300/150 | 300 | 159 | 300 | 450 | 9 | 62 |
FL300/200 | 300 | 219 | 346 | 500 | 9 | 72 |
Inquiry
If you need any information before purchase, you can click our online service, If it is not availabl
