Magnetic Bar/Tube

Magnetic Bar/Tube

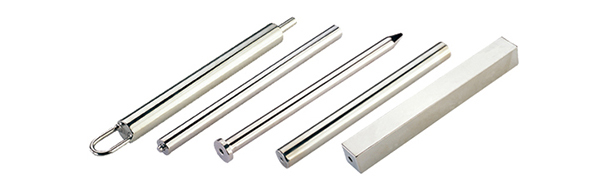

Product Name : Magnetic Bar/Tube
Directions

Magnetic Bar/Tube

Features
1. Standard bars are 25mm in diameter and length is can be decided as per user’s request. As required, maximum length can reach 2500mm. Magnetic tube or other different shape and dimension are also available.
2. 304 or 316L stainless steel are available for pipeline material which can be fine polished and meet the standard of food or pharmacy industry.
3. Standard working temperature≤80
, and maximum working temperature can reach 350 as per request.
4. Various kinds of ends like nail head, thread hole, double screw bolt are also available.
5. Different kinds of magnet like ferrous magnet or other rare earth magnets are available to cater to customer's requirement. The maximum magnetic strength of 25mm (1 inch) diameter can reach 12,000GS (1.2T).

Applications
Magnetic bar is the main part of different magnetic grate separators. They can effectively remove Ferrous contamination and metal particles from materials.

The following is the relationship between diameter, magnetic strength and maximum operation temperature for reference.


Part No

0.25T

0.5T

0.7T

0.9T

1T

1.1T

1.3T

Ø10

√EH

√H

-

-

-

-

-

Ø16

√EH

√EH

√EH

√H

√H

-

-

Ø19

√EH

√EH

√EH

√H

√H

-

-

Ø20

√EH

√EH

√EH

√SH

√H

√H

-

Ø22

√EH

√EH

√EH

√EH

√EH

√H

-

Ø23

√EH

√EH

√EH

√EH

√EH

√H

-

Ø25

√EH

√EH

√EH

√EH

√EH

√EH

√H

Ø28

√EH

√EH

√EH

√EH

√EH

√EH

√H

Ø32

√EH

√EH

√EH

√EH

√EH

√EH

√H

Ø38

√EH

√EH

√EH

√EH

√UH

√H

√H

Ø50

√EH

√EH

√EH

√UH

√H

√H

√H

Ø76

√EH

√EH

√EH

√H

√H

√H

√H

Ø100

√EH

√EH

√H

√H

-

-

√H

Remarks:

1.√ means the magnetic bar can be fabricated on condition of diameters listed in the table,while-means the magnetic bar tube can’t be produced.

2. Magnetic bar tubes whose diameter is less than 38 mm often use Smco Magnet in EH temperature interval. But if their diameter is larger than 38 mm, then Smco Magnet won’t be used.

3. Different Serious of magnetic bar tubes apply to relevant temperature.

H Series-120 Celsius Degrees

SH Series-150 Celsius Degrees

UH Series-180 Celsius Degrees

EH Series- 350Celsius Degrees
