Pole Exposed Magnetic Plate

Pole Exposed Magnetic Plate

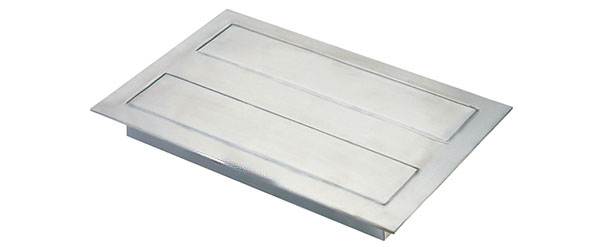

Product Name : Pole Exposed Magnetic Plate
Directions

Pole Exposed Magnetic Plate

Product Description
Pole Exposed Magnetic Plates (PEMP) are designed for removing tramp metals from the low volume materials stream. They will be installed below the materials flow in the process line.

Features
1. Plate with different magnetic action range and strong magnetic strength are available.
2. Easy cleaning and assembling.
3. Housing material is stainless steel 304 or 316L which possesses no pollution to raw materials.
4. Magnetic plate with different dimensions and extra parts like hinge, handle and mounting hole can be custom made.

Applications
Plate magnet can remove tramp iron such as Bolts, Nuts, Bits of Wire, Nails and other casual impurities from free flowing materials, like gravel, corn, sugar, plastic, flour and other granular materials in the conveying course.

Specifications

Model

Dimension(mm)

Magnets Action Range

Weight(Kg)

B

D

T

KMD-PEMP 60

250

175

51

60

5.7

KMD-PEMP 120

300

225

76

120

10.4

KMD-PEMP 50

450

360

111

150

19.1

KMD-PEMP 60

190

125

36

60

3.7

KMD-PEMP 120

250

175

46

120

5.9

KMD-PEMP 150

330

240

56

150

10.3
