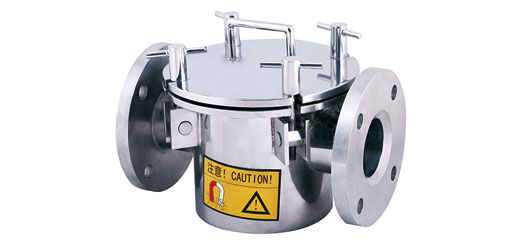

Magnetic Liquid Filters for food industry
Product Description：
Magnetic Liquid Traps, also named as Magnetic Liquid Filters, are designed for removing ferrous contamination from liquid or semi-liquid materials with different viscosity level. They preserve product purity by attracting small contaminants out from raw materials.
.
Features：
1. Many a style is available for different materials.
2. The maximum magnetic strength can reach 12000GS for normal (N Style) and 8000GS for E Style.
3. Standard working temperature≤80℃, and maximum working temperature can reach 350℃ as required.
4. Easy installation, separation and cleaning through ferrule, bolt plate, flange or uneven head etc.
5. 304 or 316L stainless steel are available for shell.
6. Ideal designed magnetic configuration ensures maximum magnetic effect without liquid flow impediment.
7. Pressure design or other special requirements cab be customized.
N Style: The Maximum magnetic strength: 12000GS（1.2T）
Specifications：

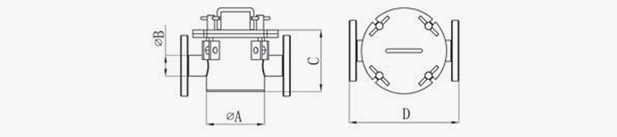

Model | Dimension(mm) | No. of rods | Weight(Kg) | |||
ΦA | ΦB | C | D | |||
FL150/25 | 159 | 32 | 167 | 300 | 5 | 12 |
FL150/32 | 159 | 38 | 167 | 300 | 5 | 17 |
FL150/40 | 159 | 45 | 167 | 300 | 5 | 18 |
FL150/50 | 159 | 57 | 167 | 300 | 5 | 21 |
FL150/65 | 159 | 76 | 167 | 300 | 5 | 23 |
FL200/50 | 200 | 57 | 206 | 350 | 7 | 27 |
FL200/65 | 200 | 76 | 206 | 350 | 7 | 29 |
FL200/80 | 200 | 89 | 206 | 350 | 7 | 30 |
FL200/100 | 200 | 108 | 228 | 350 | 7 | 33 |
FL250/80 | 250 | 89 | 250 | 400 | 9 | 40 |
FL250/100 | 250 | 108 | 250 | 400 | 9 | 42 |
FL250/125 | 250 | 138 | 250 | 400 | 9 | 44 |
FL250/150 | 250 | 159 | 300 | 400 | 9 | 50 |
FL300/125 | 300 | 138 | 300 | 450 | 9 | 58 |
FL300/150 | 300 | 159 | 300 | 450 | 9 | 62 |
FL300/200 | 300 | 219 | 346 | 500 | 9 | 72 |
