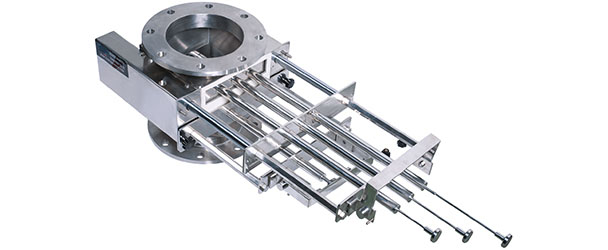

E style Magnetic Drawer Magnet

E style Magnetic Drawer Magnet
Product Name : E style Magnetic Drawer Magnet
Directions

E style Magnetic Drawer Magnet

Features
1.  maximum magnetic strength can reach 12000GS for normal (N Style) magnetic drawer and 8000GS for easy cleaning (E Style).
2. Square or round flange of entry is available to suit each customer’s requirement for easy installation.
3. Standard working temperature≤80
, and maximum working temperature can reach 350 as required.
4. The magnetic grid in the drawer with one row or two rows or more rows can be produced according to customers’ requirements.
5. 304 or 316L SS are available for pipeline materials.

Applications
Magnetic Drawers are widely used in field of ceramics, chemicals, pharmacy, food, plastic, rubber, dyestuff, mining and environmental protection, which are designed for removing Ferrum scraps from dry powder, strip or graininess materials such as sugar, grain, tea etc.

Specifications

Model

Dimension(mm)

Weight(Kg)

H

A

B

NS-2020

270

208

205

16.5

NS-2525

270

258

255

25.5

NS-3030

270

308

305

32.5

NS-3535

270

358

355

39

NS-4040

270

408

405

50

NS-2020

200

208

205

12.5

NS-2525

200

258

255

19.5

NS-3030

200

308

305

23.2

NS-3535

200

358

355

27

NS-4040

200

408

405

35.5

 Specifications

Model

Dimension(mm)

Weight(Kg)

H

H

A

B

NR-150

159

286

208

205

20

NR-200

219

286

258

255

28

NR-250

273

286

308

305

33

NR-300

325

286

358

355

43

NR-150

159

216

208

205

16

NR-200

219

216

258

255

20

NR-250

273

216

308

305

24

NR-300

325

216

358

355

31
